40FT CONTAINER
BUNDLE PRODUCTS

Container Bundles combine transformers and mining equipment, putting you in control of the workload.

REQUEST A QUOTE

324 ASIC Devices 3.5 kW per ASIC

1.3 MW Capacity

294280 cfm Cooling Power

SOLUTIONS MADE FOR YOU

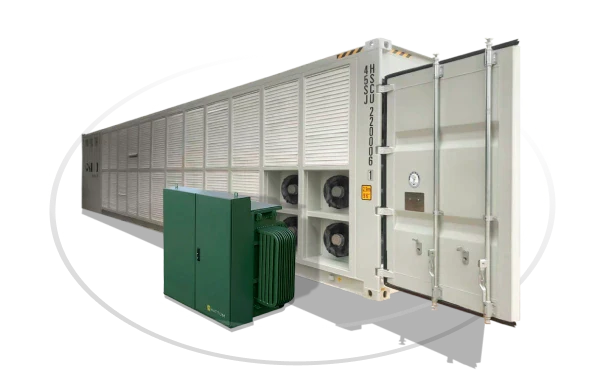

The 40-foot Container

Wattum’s largest mobile mining container can hold up to 340 ASICs with a total 1.4 MW capacity, measuring 40 feet in length and 8 feet in width.

WATTUM CONTAINER SPECIFICATIONS

CONTAINER DIMENSIONS

Size of container, ft

40

40-ft container (new or used), pcs

1

EXTERNAL

Length

40' (11900mm)

Width

7' (2200mm)

Height

8' 1" (2450mm)

INTERNAL

Length

38' (11600mm)

Width

7' (2200mm)

Height

8' (2400mm)
GENERAL SPECIFICATIONS

Box weight

5 US ton (4500kg)

Box running weight

10 US ton (8500kg-9500kg)

Color

Factory default white

Total capacity

1.3MW

Number of Asic devices

324(3.5 kW each)

Frequency, Hz

50/60Hz

Safety Certification

UL/CSA certification through North America

Operational conditions

from -13°F to +104°F (-25~40℃)

Working Humidity

10%-90%RH

Plug&Play

Yes

Maintenance

Remote/onsite

Cooling power, cfm

294280
ELECTRICAL EQUIPMENT

Power Distribution Cabinet MMC, 21PB1018A

1

Power Distribution Cabinet Operating power

1300KW

Power Distribution Cabinet Voltage

380~415V

Power Distribution Cabinet Voltage Frequency

50/60Hz

Power Distribution Cabinet Feeder Cable, withstand voltage 600V or more

single-core, 600kcMil

Transformer Adaption

2500KVA transformer with 2 containers

Plastic Case Openings M6S1200E3, 1200A*2

1

Plastic Case Openings M6S400T3, 400A*6

3

Micro-break, B1N3D63, 63A

36

PDU 3s80Xd1-2E12G

18

PDU, CSA Certification, 16A

14 holes

PDUs with one switch for easy maintenance

3 groups

PDU 3s80Xd1-2E12G connected to switch, PC

2 bits 10A high power

PDU 3s80Xd1-2E12G, connected to the mining machine

12-bit 16A high power

Power line, 6AWG

656 ft (200 m)

Distribution Cabinet Sound Isolation

Yes

Distribution Cabinet Frame and Cable

Yes

Distribution system power ark

2 sets

Main plastic case leakage circuit breaker, UI Certification

2

Auxiliary plastic case leakage circuit breaker UI Certification

36

Louver

4*7*0,2, 6 pcs (1330*2195*63mm)

Lighting 24W, pcs

4

Emergency Lighting

Yes
HEAT MANAGEMENT AND COOLING SYSTEM

Cooling power

20 fans

Fans Size

3.2*3.2*1.1' (1000*1000*350mm)

Fans diameter

35.4″ (900mm)

Fans power

0.75 kW

Fans Capacity, cfm

294280 cfm

Fans Noise decibels, db

＜65db

Fans Total Pressure

70pa

Fans Motor

0.55kw; 380v 50hz; 1400rpm

Fans Blade

430 Krupp stainless steel

Fans Blade speed

610rpm

Sanlux Belt

Drive

Fans Frame

Hot-dip galvanized material, 0.8mm thickness (Hot-dip galvanized material, 0.002ft thickness)

Fans Belt pulley

aluminum-magnesium alloy

Fans Bearing

Double-row bearing with special waterproof

Fan weight

88 lbs (40kg)

Water curtain wall specifications

Size

4 pcs x 7*0,3*6 (2200mm*100mm*1900mm)

Air blower

16 pcs x 3*1*3 (1000mm*350mm*1000mm)

Rack

6 layers, totally 36 shelves x 6*1*7 (1900mm*400mm*2200mm )

Framework overall use Hot rolling

Yes

Framework overall use Cold rolling

Yes

Framework overall use Square tube seamless welding

Yes

Framework overall use outside plastic spraying

Yes

Framework overall use spray paint technology

Yes
NETWORK SYSTEM

Network Super Category 5 cable

432

24-port 100 Megabit Switch

9 sets

Mine box after power Plug & Play

Yes

Switch 20 MB mouth

16

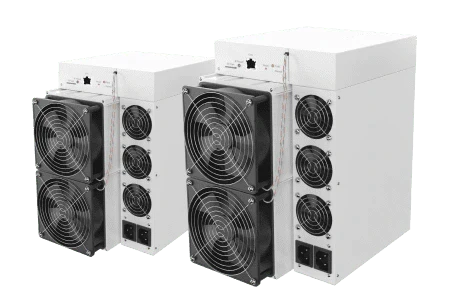

BITMAIN ANTMINER S19 MINERS

Bitmain's S19 series offers the most efficient Bitcoin mining ASICs available, with a highly competitive hashrate and consumption to price ratio among crypto mining hardware.

START HASHING

S19 SERIES

With up to 15 different models to choose from in the Antminer S19 series, each model demonstrates the highest standard of features and specifications that can be found on today's market. The S19 offers value and a competitive advantage to your mining operations. To findthe S19 that’s right for you, we’ve included a list of all S19 models and their specifications for your reference.

Select S19 Model

S19 PRO+ HYDRO

ANTMINER S19 XP

Antminer S19

Antminer S19 Pro

Antminer S19j

Antminer S19j Pro

Bitmain Antminer S19 PRO+ HYDRO models comparison

Condition

new

Hash rate

188 Th/s

Power

5445W

Efficiency

0.028j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

12V

Chip

-

Fan(s)

4

Noise level

26db

Temperature

5-40°C 41-104°F

Humidity

5-95%

Size

410x196x209mm 16.1x7.7x8.2inch

Weight

17500g 39lbs

Release Date

August 2022

Bitmain Antminer S19 XP models comparison

Condition

new

Hash rate

134 Th/s

Power

3010W

Efficiency

0.022j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

-

Chip

5-nanometer chip

Fan(s)

4

Noise level

75db

Temperature

5-45°C 41-113°F

Humidity

5-95%

Size

195x290x400mm 7.7x11.4x15.7inch

Weight

14500g 32lbs

Release Date

July 2022

Bitmain Antminer S19 models comparison

Condition

new

Hash rate

95 Th/s

110 Th/s

Power

3250W

Efficiency

0.034j/Gh

0.029j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

12V

Chip

7nm ASIC BM1397

Fan(s)

4

Noise level

75db

Temperature

5-40°C 41-104°F

Humidity

5-95%

Size

195x290x400mm 7.7x11.4x15.7inch

Weight

14500g 32lbs

Release Date

May 2020

January 2020

Bitmain Antminer S19 Pro models comparison

Condition

new

Hash rate

95 Th/s

110 Th/s

Power

3250W

Efficiency

0.034j/Gh

0.03j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

12V

Chip

7nm ASIC BM1397

Fan(s)

4

Noise level

75db

Temperature

5-40°C 41-104°F

Humidity

5-95%

Size

195x290x370mm 7.7x11.4x14.6inch

Weight

13200g 29lbs

Release Date

-

May 2020

Bitmain Antminer S19j models comparison

Condition

new

Hash rate

90 Th/s

94 Th/s

95 Th/s

104 Th/s

Power

3250W

3050W

Efficiency

0.036j/Gh

0.034j/Gh

0.029j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

12V

Chip

7nm ASIC BM1397

Fan(s)

5

4

Noise level

75db

Temperature

5-45°C 41-113°F

5-40°C 41-104°F

Humidity

5-95%

Size

195x290x370mm 7.7x11.4x14.6inch

Weight

14200g 31lbs

Release Date

June 2021

October 2020

May 2020

Bitmain Antminer S19j Pro models comparison

Condition

new

Hash rate

95 Th/s

96 Th/s

100 Th/s

104 Th/s

Power

3250W

2832W

3250W

3050W

3068W

Efficiency

0.034j/Gh

0.03j/Gh

0.032j/Gh

0.031j/Gh

0.03j/Gh

Algorithm

SHA-256

Network

Ethernet

Voltage

12V

Chip

7nm ASIC BM1397

Fan(s)

4

Noise level

75db

Temperature

5-40°C 41-104°F

5-45°C 41-113°F

5-40°C 41-104°F

5-35°C 41-95°F

Humidity

5-95%

Size

195x290x400mm 7.7x11.4x15.7inch

195x290x370mm 7.7x11.4x14.6inch

Weight

14500g 32lbs

14200g 31lbs

14500g 32lbs

13200g 29lbs

Release Date

-

August 2021

June 2021

July 2021

Imperial

Metric

S19 PRO+ HYDRO

Compare Bitmain Antminer S19 PRO+ HYDRO models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

5445W

0.028j/Gh

SHA-256

Ethernet

12V

-

4

26db

5-40°C 41-104°F

5-95%

410x196x209mm 16.1x7.7x8.2inch

17500g 39lbs

August 2022

ANTMINER S19 XP

Compare Bitmain Antminer S19 XP models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

3010W

0.022j/Gh

SHA-256

Ethernet

-

5-nanometer chip

4

75db

5-45°C 41-113°F

5-95%

195x290x400mm 7.7x11.4x15.7inch

14500g 32lbs

July 2022

Antminer S19

Compare Bitmain Antminer S19 models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

3250W

0.034j/Gh

SHA-256

Ethernet

12V

7nm ASIC BM1397

4

75db

5-40°C 41-104°F

5-95%

195x290x400mm 7.7x11.4x15.7inch

14500g 32lbs

May 2020

Antminer S19 Pro

Compare Bitmain Antminer S19 Pro models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

3250W

0.034j/Gh

SHA-256

Ethernet

12V

7nm ASIC BM1397

4

75db

5-40°C 41-104°F

5-95%

195x290x370mm 7.7x11.4x14.6inch

13200g 29lbs

-

Antminer S19j

Compare Bitmain Antminer S19j models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

3250W

0.036j/Gh

SHA-256

Ethernet

12V

7nm ASIC BM1397

5

75db

5-45°C 41-113°F

5-95%

195x290x370mm 7.7x11.4x14.6inch

14200g 31lbs

June 2021

Antminer S19j Pro

Compare Bitmain Antminer S19j Pro models

Imperial

Metric

Condition

Hash rate

Power

Efficiency

Algorithm

Network

Voltage

Chip

Fan(s)

Noise level

Temperature

Humidity

Size

Weight

Release Date

new

3250W

0.034j/Gh

SHA-256

Ethernet

12V

7nm ASIC BM1397

4

75db

5-40°C 41-104°F

5-95%

195x290x400mm 7.7x11.4x15.7inch

14500g 32lbs

-

Request a quote Shop Now

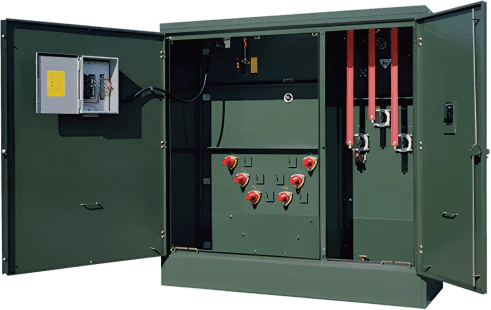

THE 3000 KVA PAD MOUNTED TRANSFORMER

The Wattum transformer is self-cooled and is an energy efficient, low noise, pad-mounted distribution transformer with a rated capacity of 3000 kVA. Designed for commercial and residential applications, this is the perfect power supply for your mining container.

WATTUM 3 PHASE PAD MOUNTED TRANSFORMER WALKTHROUGH VIDEO

WATTUM TRANSFORMER SPECIFICATIONS

TRANSFORMER DIMENSIONS

Overall Dimensions, Inches

80.4 (W) X 90.9 (D) X 79.9 (H)

Core & Coil

6,548 lb (2970 kg)

Tank & Fittings

4,482 lb (2033 kg)

Insulation Oil

3,454 lb (1566 kg)

Total Weight

14,770 lb (6700 kg)

Colour

Green Munsell # 7.0gy-3.29/1.5
OTHER SPECIFICATIONS

H.V Bushing Wells & Inserts - 15 Kv 200a

6 Pc

L.V Bushing - 2.5kv 5000a

4 Pc

De-Energized Tap Changer (Detc) - 5-Step, 150a

1 Pc

Oil Level Gauge

1 Pc

Oil Temperature Indicator

1 Pc

Pressure Relief Valve

1 Pc

Pressure Vacuum Gauge

1 Pc

Radiators (Welding)

3 Pc

Loadbreak Switch T-Blade - 4 Position, 200a

1 Pc

Oil Upper Fill Plug - 1 Inch

1 Pc

Drain Valve With Sampler - 2 inch (51mm)

2 Pc

Gas Sample Valve

1 Pc

Pad Lockable Door Handle

1 Pc

Tank

1 Pc

Lifting Hook For Complete Transformer

4 Pc

LV Breaker

1 Pc

Removable Ground Strap

1 Pc

2 Hole Ground Pad For Main Body

3 Pc

Metal L.V-H.V Barrier

1 Pc

Name Plate (On Local Door)

1 Pc
GENERAL

Class

3000 Kva (Onan, 3ph, 60hz, Oil Filled)

High Voltage

13800v Delta, 95kv Bil

Temperature Rise

65 Rise

Low Voltage

415y/240v, 30kv Bil

Cooling

ONAN

Fluids

Mineral oil type II

Core Design

5 Legged

Winding

Star or Delta

Nema 3r Enclosure

Yes

Bottom Feed

Yes

Audible Sound Level

55 db

Availability

In Stock
APPLICABLE STANDARDS

Ieee C57.12.00

Yes

Ieee C57.12.90

Yes

WHY CHOOSE US?

Wattum is a complete mining solutions provider, offering equipment management, optimization, and security solutions both remotely and on-site. We are a one-stop service for all of your Bitcoin mining needs.

On-site Security
& Maintenance

Repair
Solutions

Transaction
Transparency

Technical
Support

Free
Consultations

Turnkey Mining
Solutions

OUR PROCESSES

Identify Potential Site
Our team researches and identifies potential sites for your mining operations.
Inspect Site
Once identified, a thorough inspection is completed to ensure the site is suitable.
Communicate with Utility Company
Our team communicates directly with the local utility company, negotiating the best available rates.
Build Container
Your mobile container is built and prepared for transportation to the final site.
Transport Container and Transformer
As part of your bundle, the container and transformer are transported to the site.
On-Site Installation
Once your bundle has arrived, our team performs a complete on-site installation to help you get started as soon as possible.
